YELLOWTEC Litt 50 Base Controller - YT9100

Including Installation Tool

YT9100

Product lists can be submitted to HHB for a packaged quotation

Add to Product List
Add to Product List



litt. Perception is everything.

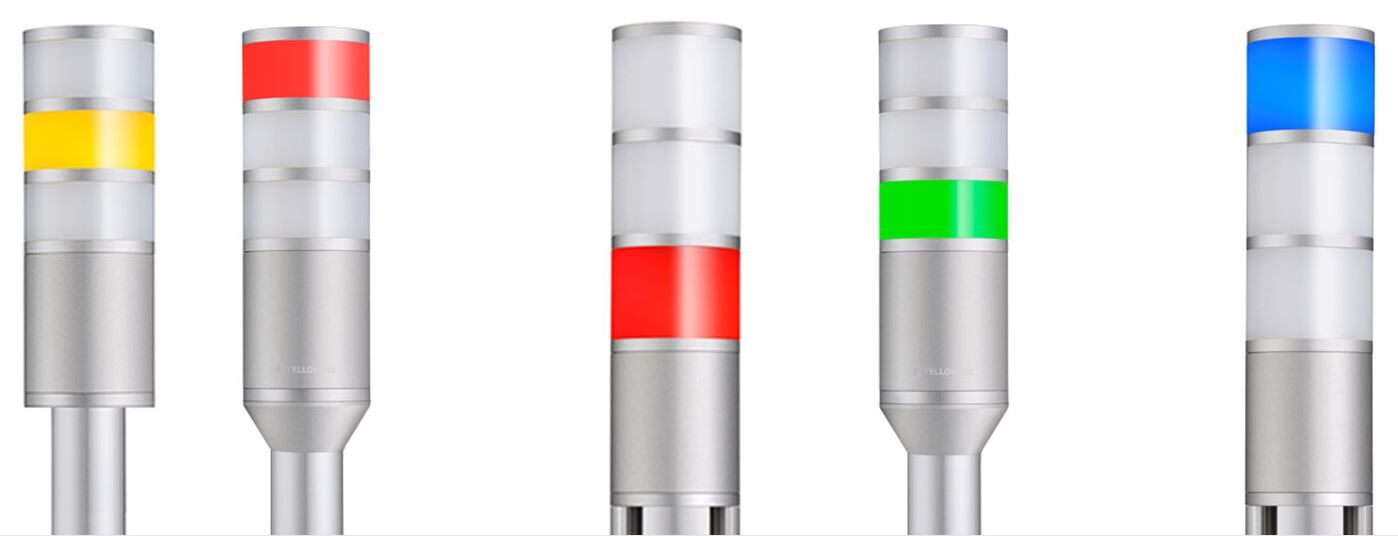

Experience a whole new kind of signalling. With forward thinking options. Developed as an innovative, high-tech LED signalling device, litt brings convenience and flexibility. Programmable light and flash patterns, ultra-bright CleanVision® LED technology, sleek design and an easy assembly system coalesce to create a new class of lighting design. Unmistakably different.

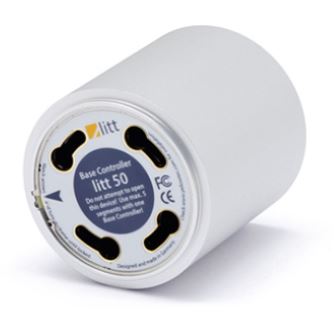

The solid aluminium litt 50 Base Controller is the fundamental element of every litt Signalling Device. Each litt Base Controller serves as an intelligent control centre of signalling. Capable of up to five differently programmed litt Colour Segments and a litt Sound Segment to be placed on top, it allows you to mix segments of different colours and sizes according to your personal preferences.

When creating your individual litt Signalling Device, choose the standard aluminium litt 50 Base Controller to mount it to surfaces like desks or place it on top of a litt Riser or a m!ka System Pole to lift it up. To do so, our included litt Universal Mounting Kit is all you need while all other tools become no longer necessary.

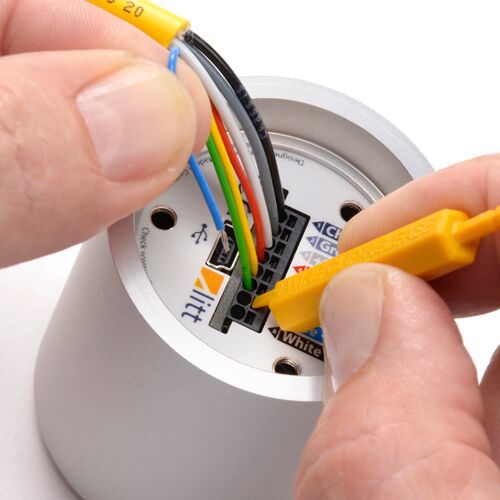

The litt Base Controller’s connection panel consists of an 8-pin terminal block with a handy Phoenix Low-Insertion Force Connector, and a mini-USB jack. All the connecting parts are located inside the litt Base Controller and litt Segments, making the entire device come in an extraordinarily clean and elegant look. litt’s Base Controller is equipped with automatic litt Colour Segment recognition, individual control inputs for each colour (2.4-24VDC) and reverse polarity protection.

Key Features

  • Fundamental element of the litt Signalling Device
  • Control centre of signalling
  • Bus control with automatic segment recognition
  • Individual control inputs for each colour (2,4-24W)
  • 8-pin terminal block connection panel
  • Holds up to 5 differently programmed litt Colour Segments and a Sound Segment on top
  • USB port for easy configuration of the individual programmable litt Segments
  • Configuration via litt Lighthouse® Software
  • All connecting parts are located inside the controller
  • Extraordinarily clean and elegant anodized aluminium look
  • To mount litt to desks and other surfaces
  • The included litt Mounting Kit covers all necessary tools
  • To lift it up optionally place it on top of a litt Riser or m!ka System Pole
  • Compatible with litt Spoiler
  • Compatible with the whole m!ka range



Media

Brochure (1.50 MB)
litt product range (314.82 KB)

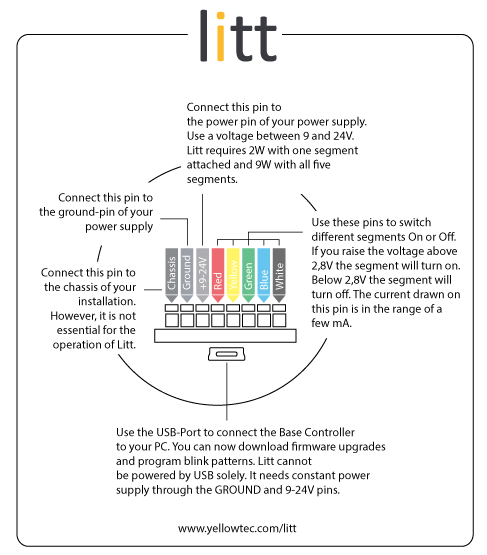

Connection diagram (20.12 KB)
